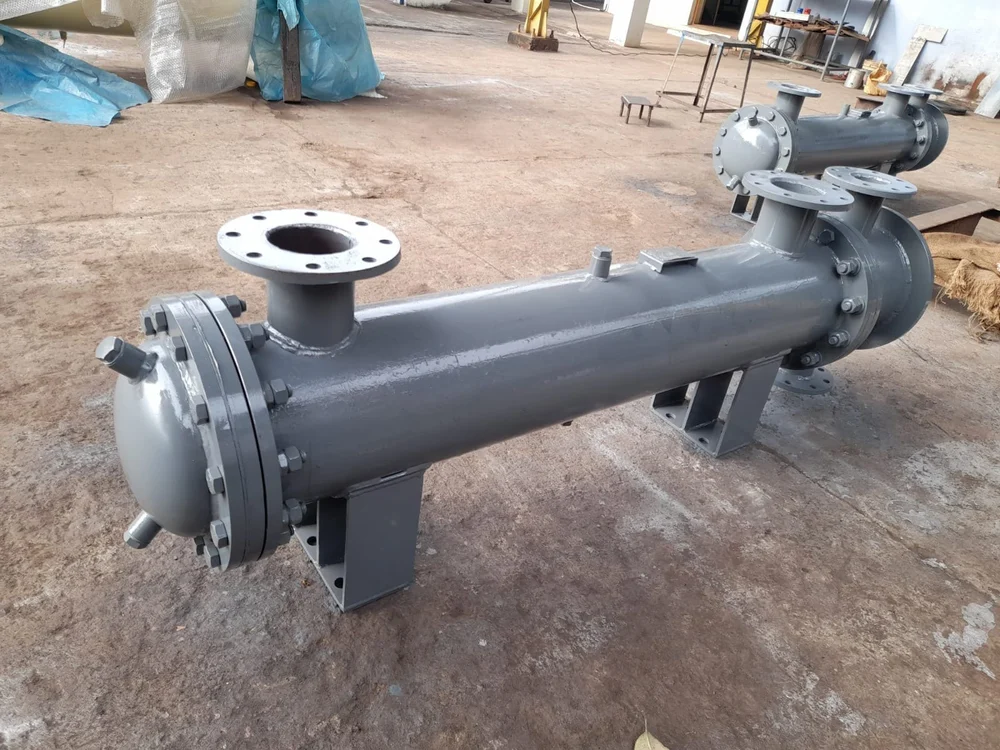

Highly optimized horizontal shell and tube water-cooled condensers. Designed specifically for HVAC chiller packages, food processing refrigeration, and heavy process loop cooling. Engineered to maximize phase-change heat rejection rates with minimal fluid resistance.
| Specification Parameter | Value / Standard Configuration |
|---|---|
| Condenser Type | Shell And Tube |
| Capacity Range | 10–20 TR |
| Tube Material | High-Conductivity Copper |
| Shell Material | Heavy-Duty Carbon Steel |
| Compatible Refrigerant | R22 (Also compatible with modern eco-refrigerants) |
| Cooling Water Flow | 5–10 m³/hr |
| Water Flow Rate | Up to 5 m³/hr |
| Tube Cleaning Access | Fixed Tube Sheet Design |
| Orientation & Passes | Horizontal, 4-Pass Configuration |
| Minimum Order Qty (MOQ) | 1 Piece |
High Thermal Conductivity: Copper’s excellent heat transfer properties make our water-cooled condensers highly efficient in dissipating heat. This ensures optimal cooling performance and rapid phase changes inside the refrigeration loop, maintaining stable condensing temperatures even under continuous load patterns.
Rigorous Corrosion Resistance: Copper provides a natural resistance to corrosion, especially in harsh or demanding industrial water environments. Paired with a heavy-gauge carbon steel outer shell casing, our material selection significantly enhances the operational longevity, structural durability, and leak resistance of the heat exchanger.
Compact & Cost-Effective Configuration: The horizontal, multi-pass shell and tube design enables space-saving, compact, and highly cost-effective cooling solutions. This makes it an ideal fit for diverse heavy-duty chilling duties, including HVAC central systems, commercial refrigeration, and process machinery cooling without requiring excessive physical footprints.
Every condenser is modeled with specific thermodynamic profiles. Below are the key engineering specifications built into our Water Cooled designs:
Constructed with a sturdy fixed tube sheet design to withstand high physical stress while allowing simple cleaning access.
Our horizontal 4-pass configuration ensures excellent contact time between the water and refrigerant for maximized heat transfer.
Fully optimized for R22 refrigerant loops, as well as customized configurations for eco-friendly modern replacement options.
